Digital Pulse Processor
Applications: High speed timing, high time resolution, high counting, waveform discrimination (n/ƒÁ)
Detector: Plastic, LaBr3, liquid scintillator, wire chamber, etc.
This digitizer digitizes PMT and MPPCk directly or high-speed pulses from a high-speed preamplifier with a high-speed ADC. The digital pulse processor developed by TechnoAP acquires time and energy information by digital CFD and QDC. In addition, waveform fitting enables high temporal resolution based on sampling interpolation. Neutron/gamma radiation discrimination PSD function and LIST-WAVE waveform information are also available as options.
Option: LIST-WAVE
Function: DPP: CFD, TDC, QDC PSD etc.
Mode: Histogram, List and Waveform
Communication I/F: Gigabit Ethernet, TCP/IP
Output: 1Mcps or more per channel
Multi-board synchronization features
Algorithms for Digital Pulse Processing (DPP)
Pulse Shape Discrimination (PSD)
Image Model Features Reference

VME


Desktop		 APV8108-14


APU8108-14		 8 channels
Time resolution: 230 ps, Na-22 @ 511 keV, LaBr3 vs LaBr3

VME

Desktop		  APV8104-14


APU8104-14		 4 channels
Time resolution: 230 ps, Na-22 @ 511 keV, LaBr3 vs LaBr3
Analog gain adjustable

VME

Desktop		 APV8516-14


APU8516-14		 16 channels
Time resolution: 230 ps, Na-22 @ 511 keV, LaBr3 vs LaBr3

VME

Desktop		 APV8508-14


APU8508-14		 8 channels
Time resolution: 230 ps, Na-22 @ 511 keV, LaBr3 vs LaBr3

VME

Desktop		 APV82516-14


APU82516-14		 16 channels
Time resolution: 230 ps, Na-22 @ 511 keV, LaBr3 vs LaBr3

TOP
Digital Signal Processor
Suitable for Semiconductor Detector
Applications: High resolution digital signal processing for HPGe
Detectors: Multi-element HPGe, Si, SDD, CdTe, CZT, etc.
@ *Scintillation detectors require a charge-sensitive preamplifier.
The signal from the charge-sensitive preamplifier is trapezoidally filtered by a digital signal processor to obtain energy information. High resolution ADC is used to minimize noise to the utmost limit and achieve high resolution. Waveform information RISE-WAVE is also included as an option and can be used for waveform analysis of multi-element HPGe detectors, etc.
Functions: DSP: Trapezoidal Filter, Base Line Restorer, Pile-up Rejector, CFD, etc.
Mode: Histogram, List, Waveform
Options: RISE-WAVE
Communication I/F: Gigabit Ethernet, TCP/IP
Output: 100 kcps and more per channel
Waveform shaping by digital signal processor (DSP)
Image Model Features Reference

VME

Desktop		 APV8032


APU8032		 32 channels
Energy resolution: 1.7 keV @ 1.33 MeV, HPGe

VME

Desktop		 APV8016A


APU8016A		 16 channels
Energy resolution: 1.7 keV @ 1.33 MeV, HPGe

VME

Desktop		 APV8008A


APU8008A		 8 channels
Energy resolution: 1.7 keV @ 1.33 MeV, HPGe


VME

Desktop		 APV8004A


APU8004A		 4 channels
Energy resolution: 1.7 keV @ 1.33 MeV, HPGe

VME

Desktop		 APV8002A

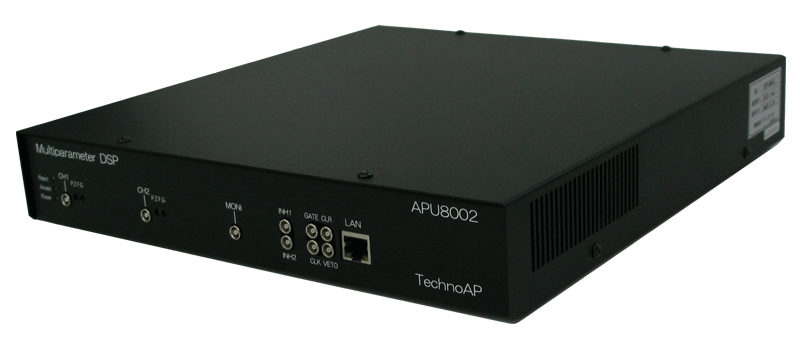

APU8002A		 2 channels
Energy resolution: 1.7 keV @ 1.33 MeV, HPGe

NIM

Desktop		 APN508


APU508		 8 channels
Energy resolution: 1.7 keV @ 1.33 MeV, HPGe

TOP
Hybrid Digital Spectrum Analyzer
Image Model Features Reference

VME

Desktop		 APV8M24


APU8M24		 Input upper row 2 channels for anode signal
ADC 1Gsps, 14-bit build in
Input lower row 4 channels for output preamp signal
ADC 62.5Msps, 14-bit build in
Communication Interface: Giga bit Ethernet TCP/IP
Energy resolution: 1.7 keV @ 1.33 MeV, HPGe
Output: 100 kcps and more per channel
DSP: Trapezoidal filter, Baseline restorer, Pileup rejector, CFD
Suited for semiconductor detectors such as HPGe, SiPM, CZT

VME

Desktop		 APV8M44


APU8M44		 Input upper row 4 channels for anode signal
ADC 500Msps, 14-bit build in
Input lower row 4 channels for output preamp signal
ADC 62.5Msps, 14-bit build in
Communication Interface: Giga bit Ethernet TCP/IP
Energy resolution: 1.7 keV @ 1.33 MeV, HPGe
Output: 100 kcps and more per channel
DSP: Trapezoidal filter, Baseline restorer, Pileup rejector, CFD
Suited for semiconductor detectors such as HPGe, SiPM, CZT

TOP
Multi Channel Analyzer
Advanced processing algorithms can be easily adapted to different detectors and application ensuring effective data analysis even high count rates.
Image Model Features Reference

VME

Desktop		 APV8216


APU8216		 Input 16 channels on LEMO coaxial connectors
Communication Interface: Gigabit Ethernet TCP/IP
Throughput: 200kcps/ch. or more

VME

Desktop		 APV8816AMP


APU8816AMP		 Input 16 channels on LEMO coaxial connectors
Communication Interface: Gigabit Ethernet TCP/IP
Equipped with spectroscopic amplifier

VME

Desktop		 APV8208


APU8208		 Input 8 channels on LEMO coaxial connectors
Communication Interface: Gigabit Ethernet TCP/IP
Throughput: 200kcps/ch. or more

TOP
High counting DSP for XAFS measurement
Application: High count SDD transistor reset preamplifier compatible, ultra high count digital signal processing
Detector: Silicon Drift Detector, Multi-element HPGe
Feature: A circuit that optimizes the processing of the transistor reset preamplifier connected to the SDD is installed to maintain high throughput even at ultra-high counts. Energy information is acquired by performing Trapezoidal Filter with a digital signal processor. The high resolution ADC is used to suppress noise to the maximum and achieve high resolution.
Image Model Features Reference

NIM


Desktop
 APN504X


APU504X		 AC type for High Resolution
Input 4 channels on LEMO coaxial connectors
ADC: 100MHz, 14-bit
DSP: Baseline Restorer, Pileup Rejcetor, CFD etc.
Conversion gain: Up to 4 k channels
Measurement mode: Histogram, List and Waveform
Communication Interface: Gibabit Ethernet
Option1: Quick-Scan
Option2: Fast-SCA
Option3: Count upper limit extension

NIM


Desktop		 APN504XDC


APU504XDC		 DC type for High Count-rate
Input 4 channels on LEMO coaxial connectors
ADC: 100MHz, 14-bit
DSP: Baseline Restorer, Pileup Rejcetor, CFD etc.
Conversion gain: Up to 4 k channels
Measurement mode: Histogram, List and Waveform
Communication Interface: Gibabit Ethernet
Option1: Quick-Scan
Option2: Fast-SCA
Option3: Count upper limit extension

TOP
Digital Spectrometer
Application: Integrated high-voltage power supply, preamplifier power supply, and digital signal processor
Detector: Multi-element HPGe, Si, CdTe, CZT etc.
*A charge-sensitive preamplifier is required to input the signal from the scintillation detector.
Feature: The high-voltage power supply can be remotely controlled by the application, improving the usability of the user. The polarity can be switched to correspond to any detector. It is a low cost product that is very small and easy to carry.
Image Model Features Reference

NIM


Desktop		 APN101


APU101		 Multi-function digital spectrometer
Integrated high-voltage power supply, preamplifier power supply,
and MCA
Input: 1 channel LEMO connector
ADC: 100MHz, 14-bit
DSP: Baseline Restorer, Pileup Rejecter, CFD, etc.
Conversion gain: Up to 8 k channels
Measurement mode: Histogram, list, waveform
Communication I/F: Ethernet


NIM


Desktop		 APN101X


APU101X		 Multi-function digital spectrometer
Integrated high-voltage power supply, preamplifier power supply,
and MCA
Input: 1 channel LEMO connector
ADC: 100MHz, 14-bit
DSP: Baseline Restorer, Pileup Rejecter, CFD, etc.
Conversion gain: Up to 8 k channels
Measurement mode: Histogram, list, waveform
Communication I/F: Ethernet
ROI-SCA function as standard equipment

TOP
Special purpose
Image Model Features Reference

VME		 APV2200 Clock / Reset Generator

VME

Desktop		 APV8101S


APU8101S		 Input 1 channels on LEMO coaxial connectors
Communication Interface: Gigabit Ethernet TCP/IP
Energy resolution: 1.7 keV @ 1.33 MeV, HPGe
Output: 100 kcps and more per channel
DSP: Trapezoidal filter, Baseline restorer, Pileup rejector, CFD
Suited for semiconductor detectors such as HPGe, SiPM, CZT

VME

Desktop		 APV8011S


APU8011S		 Input 1 channels on LEMO coaxial connectors
Communication Interface: Gigabit Ethernet TCP/IP
Energy resolution: 1.7 keV @ 1.33 MeV, HPGe
Output: 100 kcps and more per channel
DSP: Trapezoidal filter, Baseline restorer, Pileup rejector, CFD
Suited for semiconductor detectors such as HPGe, SiPM, CZT
Pileup Separator
APV8102-14
MW		 Digitizer with large memory capacity
Input : 2-channel LEMO connector
ADC:1GHz, 14-bit
Memory : 1 gb
DPP : list (TDC + QDC) and CFD, TDC, PSA function
Pulse waveform acquisition
Communication I/F : Gigabit Ethernet
APV81G32Q Switched capacitor ADC
Input : 32-channel (connector : HIF3BA-34PA-2.54 ds)
ADC : DRS-4 Chip
Sampling Frequency : 1G/5Gsps
Measurement modes : WAVE, DUMP
Communication I/F : Ethernet
APG1916 Amplifier discriminator
Output : 16 channels (Connector : 34-pin MIL connector)
Output : LVDS signal
Rise time : 1.5 nanoseconds
Repetition frequency : 125 MHz

TOP
High Voltage Power Supply and Preamplifier Power Supply
Functional parameters can be programmed and monitored via Ethernet.
It is provided with a control software runs under Windows OS with and easy graphical user interface.
Image Model Features Reference
APV3304 2-unit wide, 6U VME64 board
4 independently controllable HV channels on SHV coaxial connectors
Available with either positive, negative or mixed polarity
Provide voltage up to }5 kV
Ripple: 20mVpp @ +5 kV
Remote control via Ethernet
APV3302 2-unit wide, 6U VME64 board
2 independently controllable HV channels on SHV coaxial connectors
Available with either positive, negative or mixed polarity
Provide voltage up to }5 kV
Ripple: 20mVpp @ +5 kV
Remote control via Ethernet
APV3008 High voltage power supply board for MPPC and Temperature compensation function for each CH.
APV3018 1-unit wide, 6U VME64 board
8 independently controllable HV channels on SHV coaxial connectors
Available with either positive, negative or mixed polarity
Provide voltage up to }1 kV
Ripple: 0.01 % Vpp @ + 1kV
Remote control via Ethernet
  APV4004 1-unit wide, 6U VME64 board for preamplifier power supply
Four Female DB9 connectors with }12 V, }24 V each

TOP
VME powered crates
Image Model Features Reference
APV9007 7 slots
6U x 160 mm
VME modules

+5 V: 60.0 A
+12 V: 8.5 A
-12 V: 4.3 A

167(W) x 311(H) x 400(D) mm3
APV9020 20 slots
6U x 160 mm
VME modules

+5 V: 60.0 A
+12 V: 13.0 A
-12 V: 13.0 A

481(W) x 311(H) x 400(D) mm3
APV9003R

TOP
USB series
Data transfer and power supply by USB
Image Model Features Reference
APG7400A Quad independent 16 k digital MCA
Mode: PHA, LIST, MCS, COINCIDENCE
Function: GATE input , VETO input
Deadtime: 1.5 micro seconds

APG7305A Single input MCA with spctroscopy amplifier
(Semi-Gaussian fitting)
Shaping time: 0.25 micro second and more
Integral non-linearity < }0.025 %
APG7300A LEMO connector for 16 k MCA
Mode: PHA
Function: GATE input , VETO input
Deadtime: 500 nano seconds

APG7502C 100 MHz dual input digital counter on LEMO coaxial connectors
Rise time: 1.5 nano seconds
Functions: 1. Rate metor, 2. Timer counter, 3. Multi channel scaler

TOP
Preamprifier
Comes with a special cable with a connector
Image Model Features Reference
  APG1701 High-speed amplifier discriminator
  APG1700 Gain switching type high-speed amplifier
APG1603 Charge amplifier for semiconductor detector
APG1500 Compact fast preamplifier for scintillation detectors
Input 1 channels on LEMO coaxial connectors
The sensitivity of the Charge Sensitive Preaplifier can be set via rotary switch

TOP
Random Pulse Generator
Image Model Features Reference

NIM

Desktop		 APN6001


APU6001		 Output: 2 channels
Pulse height value, Rise-time, Decay, and period can be set arbitrarily.
Reproduce the stochastic event of Poisson distribution.

TOP
Semiconductor detectors
Image Model Features Reference
XCT101001 CdTe
10 x 10 x 1 mm3
XCZT101005 CdZnTe
10 x 10 x 5 mm3

TOP
Scintillation detectors
Image Model Features Reference
XC700 CsI (Tl) scintillation detector
Large size: 70 x 70 x 70 mm
XN300  NaI (Tl) scintillation detector
Large size: 3 x 3 inch, 76 x 76 mm

TOP
Spectrum Survey Meter
Image Model Features Reference
TS500 Gamma-ray energy-compensation
CeBr3(Ce) 1 inch x 1 inch
TS215 Gamma-ray energy-compensation
LaBr3(Ce) 1.5 inch x 1.5 inch

TOP
Mini Survey Meter
Image Model Features Reference
TA100 Handy type compact survey meter
Detectors : CdTe semiconductor detector
Dose rate and gamma-ray spectrum are displayed
Communication I/F : USB
GUI with application software for Windows

TOP
All in one digital spectrometer kit
Image Model Features Reference
XL150-SYS Measuring system for scintillation detector
Equipment Configuration : APU101 + XL150PRE
Detector : LaBr3 (Ce), Size 38x38mm + PMT
Measure mode : histogram
Communication I/F : Ethernet
GUI with application software for Windows
XCE150-SYS Measuring system for scintillation detector
Equipment Configuration : APU101 + XCE150 + APG1500
Detector : CeBr3 (Ce), size 38x38mm + PMT
Measure mode : histogram
Communication I/F : Ethernet
GUI with application software for Windows
XCZT05-SYS Measuring system for semiconductor detector
Configuration : APU101 + CZT-C10M
Detector : CdZnTe, size 10x10x5mm
Measure mode : histogram
Communication I/F : Ethernet
GUI with application software for Windows

TOP
Positron Annihilation Lifetime Measurement System
Image Model Features Reference
DPALMS-LCA ALL-IN-ONE for PALS, CDB and AMOC
LINK to product introduction page
Introduction brochure
- DPALMS-LH For LIFETIME measurement
Extended-support version
CDB and AMOC measurements are possible by adding a dedicated board

VME

Desktop		 APV8702 2 channels on SMA coaxial connectors
Communication Interface: Giga bit Ethernet TCP/IP
Time resolution: 160 - 190 pico seconds, Na-22 @ 511 keV, BaF2 vs BaF2
Functions: Digital CFD, TAC, MCA, DELAY
APV8002C 2 channels on LEMO coaxial connectors
Communication Interface: Ethernet TCP/IP
Energy resolution: 1.7 keV @ 1.33 MeV, HPGe
Output: 100 kcps and more per channel
DSP: Trapezoidal filter, Baseline restorer, Pileup rejector, CFD
Combined COINCIDENCE firmware for CDBS measurement
XBF110 BaF2 scintillation detector
ƒÓ 28 mm ~ L 20 mm
PMT: H3378-51
XBF464025
XBF464015		 BaF2 scintillation detector with Conical head
ƒÓ 46 mm ƒÓ40 mm ~ L25 mm (XBF464025)
ƒÓ 46 mm ƒÓ40 mm ~ L15 mm (XBF464015)
PMT: H3378-51

TOP
Silicon Drift Detector System
Image Model Features Reference
XSDD50-07 series Seven (7) Element
Element area 455mm2, Active area 350mm2
High-countrate / High-sensitivity by suitable DSP
XSDD50-04 series Four (4) Element
Element area 260mm2, Active area 200mm2
High-countrate / High-sensitivity by suitable DSP
XSDD50-01 series One (1) Element
Element area 65mm2, Active area 50mm2
High-resolution / High-throughput by suitable DSP

TOP
Copyright (C) TechnoAP All Right Reserved.
Last Update: 6, December, 2022.

Design and manufacture of electronic circuits
relevant to the instrumentation control and the radiation measurment
Contact us: tap@techno-ap.com
